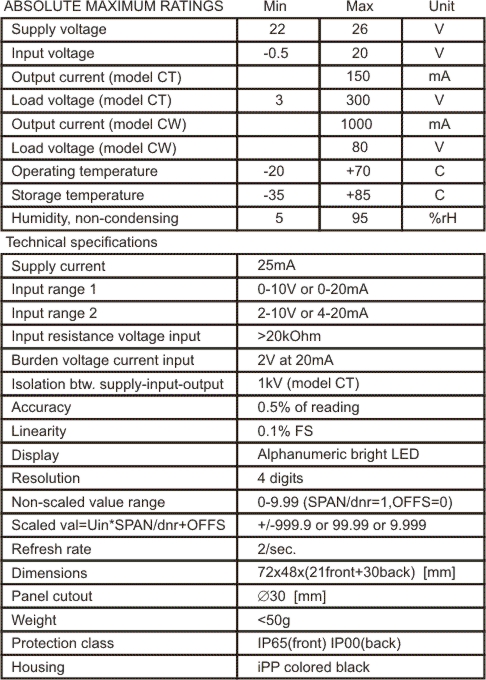

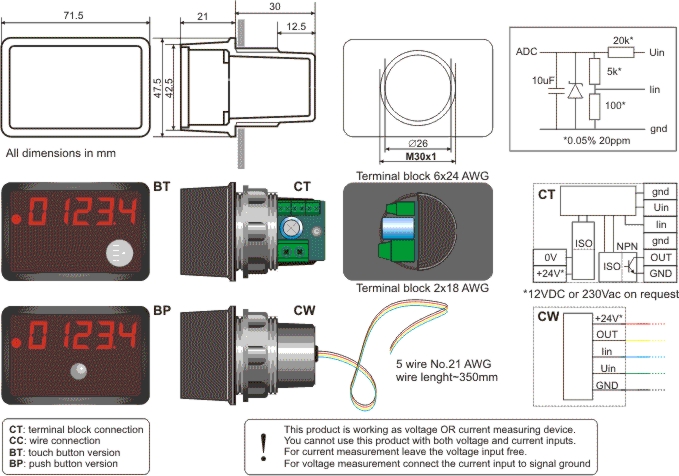

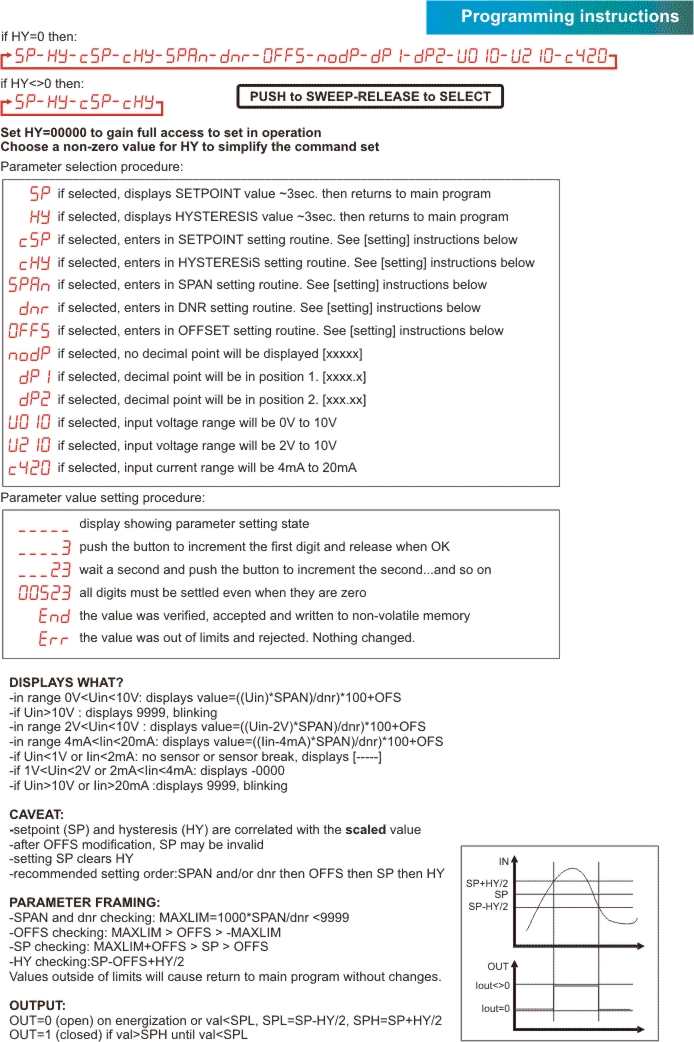

PM48-UC212 process voltage/current indicator, scalable
PM48-UC212 is a DC voltage or 4-20mA loop current measuring device designed for control and monitoring of industrial processes.
May be used with standard current or voltage output signal generators like sensors, transducers or PLC analog control outputs.
The base input signal is filtered, converted and scaled to direct display the process variable, and is compared with a programmable set-point value generating an output signal for alarm or process control operation.

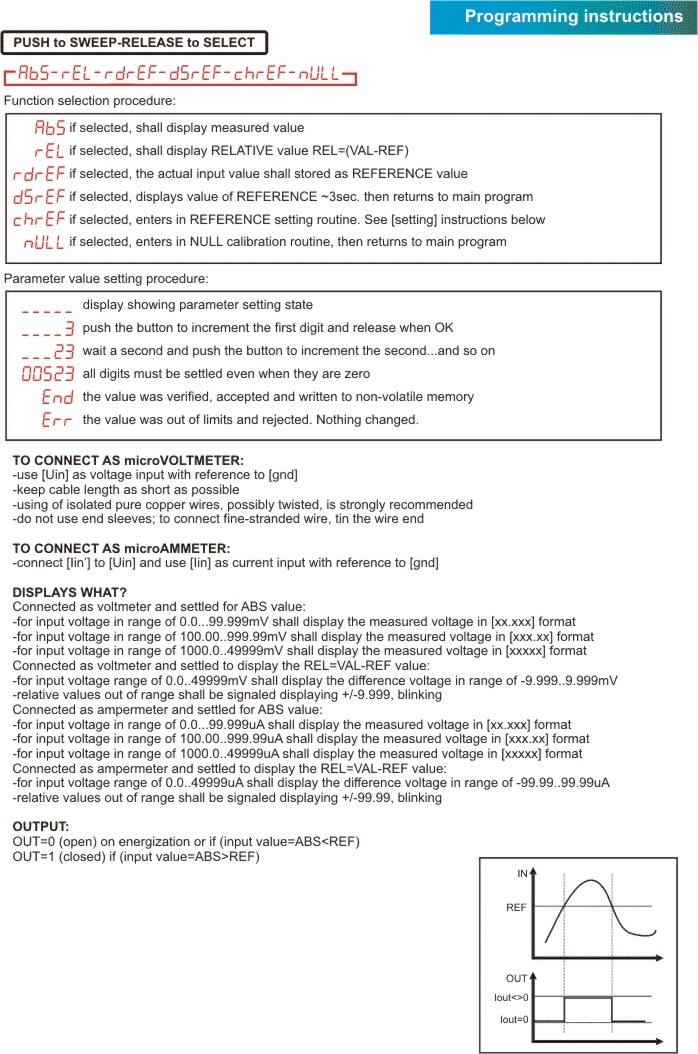

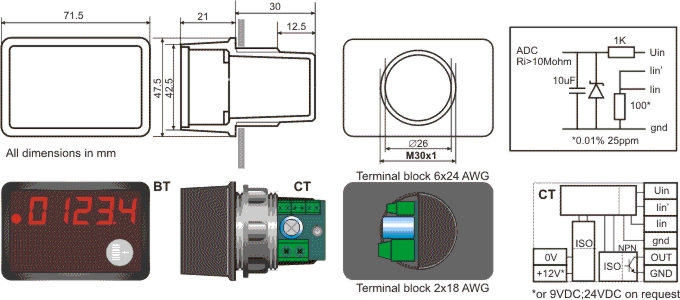

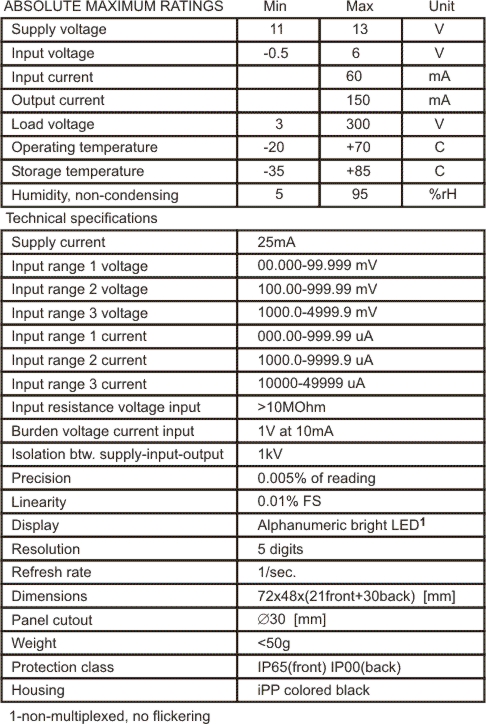

PM48-UC520 precision microvolt/microammeter
  PM48-UC520 is a precision auto-ranging DC voltage/DC current measuring device designed for high accuracy demanding tasks.
Connected to good quality signal sources, the high resolution meter permits quick and reliable estimation of tiny, almost invisible drift patterns. In order to display relative rather then absolute variations too, a reference setting menu item is provided

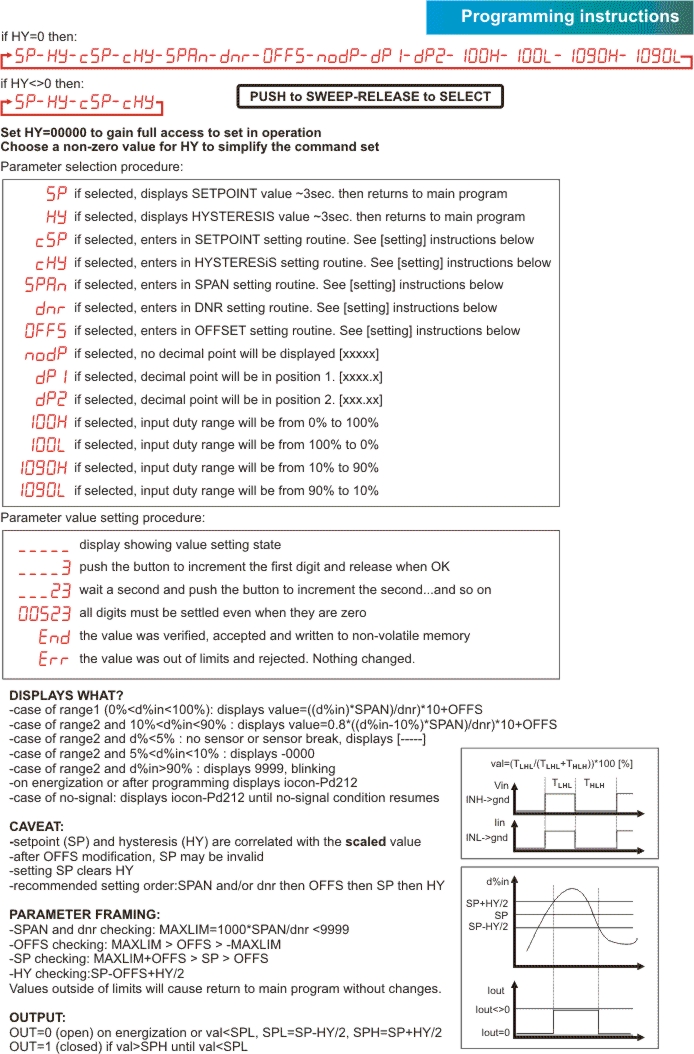

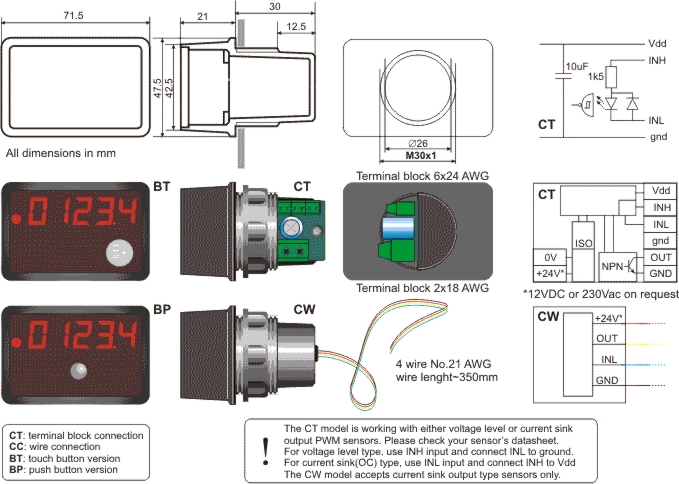

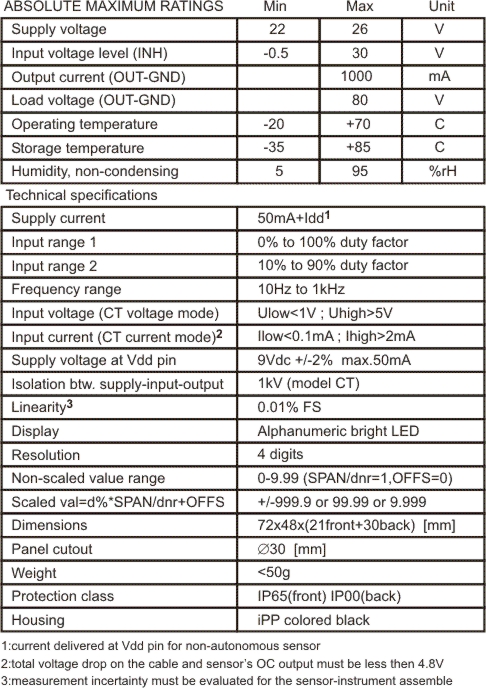

PM48-PW212 pulse width modulated signal indicator
  PM48-PW212 is a duty factor measuring device designed for control and monitoring of industrial processes.
May be used with PWM output signal generators like sensors, transducers or PLC PWM control outputs.
The base input signal is converted and scaled to direct display the process variable, and is compared with a programmable set-point value generating an output signal for alarm or process control operation.

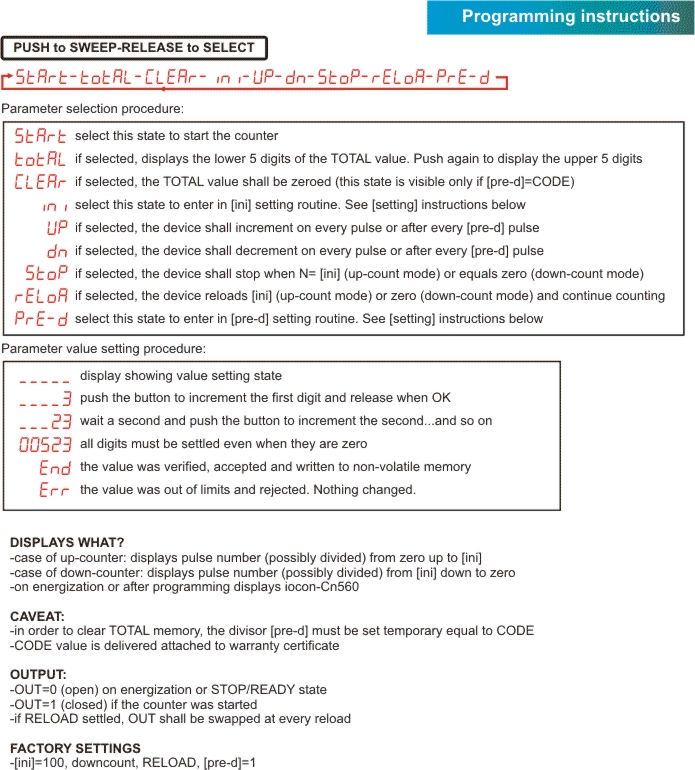

PM48-Cn560 pulse counter/totalizer
  PM48-Cn560 is a pulse number counter and totalizer device designed for control and monitoring of industrial processes.
May be used with any type of pulse output signal source like position or proximity sensors. limit switches etc.
The received pulses are possibly divided, up-counted to a preset value or down-counted to zero, generating an output signal for alarm or process control operation. The total number of incoming pulses are stored in the non-volatile memory.





..LEGEND moreinfo.gif (915 bytes)More Info


bluestar.gif (913 bytes)Request Information price.gif (949 bytes)Price and availability paper.gif (920 bytes)Technical paper
Panelmeters
PM48-UC212 process voltage/current indicator, scalable moreinfo.gif (915 bytes)  down.gif (905 bytes)  price.gif (949 bytes)
PM48-UC520 precision microvolt / microammeter moreinfo.gif (915 bytes)  down.gif (905 bytes)  price.gif (949 bytes)
PM48-PW212 pulse width modulated signal indicator moreinfo.gif (915 bytes)  down.gif (905 bytes)  price.gif (949 bytes)
PM48-Cn560 pulse counter/totalizer moreinfo.gif (915 bytes)  down.gif (905 bytes)  price.gif (949 bytes)
More products are on the way,so bookmark this site and come back soon



Price list
  Item     1-10     10-100    over 100   Availability
  PM48-UC212       25         23         *    in stock
  PM48-UC520       49       45         *    in stock
  PM48-PW212       25       23         *    in stock
  PM48-Cn560       25          23         *        in stock
*Contact us for pricing     **Contact us for availability                             All prices in Euro
